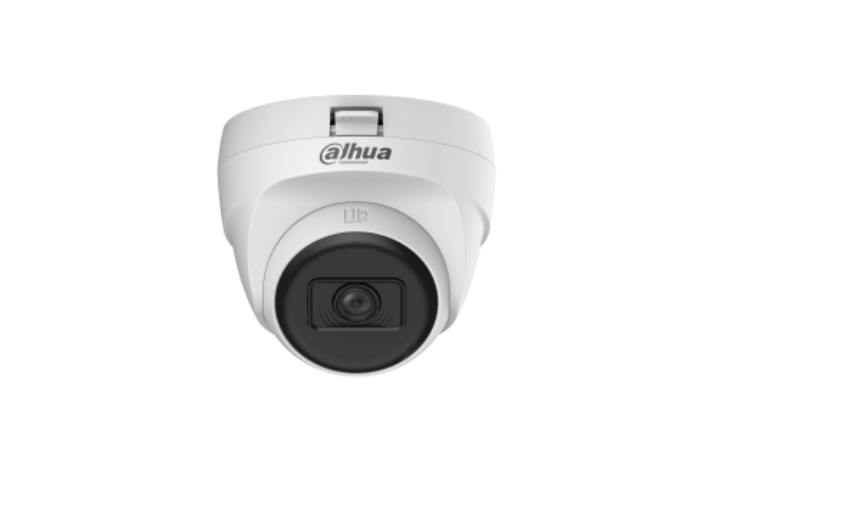

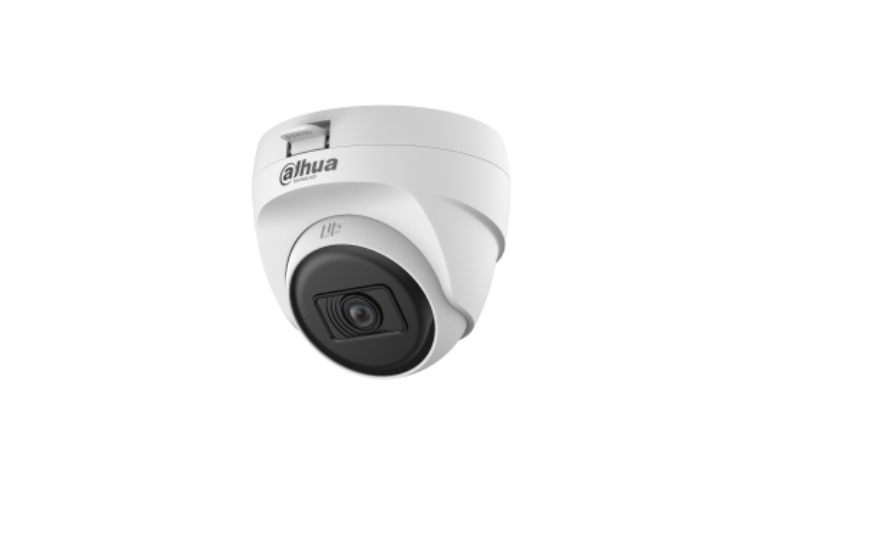

Dahua HAC-T1A51-U is a 5MP HDCVI eyeball CCTV camera with Smart IR night vision up to 25m, DWDR, 2D noise reduction, and multi-format CVI/TVI/AHD/CVBS support. Designed for fast installation, this compact indoor/outdoor security camera delivers clear 5MP video surveillance for homes, offices, shops, and commercial spaces.

Specifications

Camera

• Image Sensor: 5MP CMOS
• Max Resolution: 2880 × 1620
• Scanning System: Progressive
• Min Illumination:
  • 0.02 Lux (Color)
  • 0.002 Lux (B/W)
  • 0 Lux with IR ON
• S/N Ratio: >65 dB
• IR Distance: Up to 25m
• IR LEDs: 2
• Angle Adjustment: Pan 0°–360°, Tilt 0°–78°, Rotation 0°–360°

Lens

• Lens Type: Fixed-focal
• Lens Mount: M12
• Focal Length: 2.8mm / 3.6mm
• Aperture: F2.0

Video Features

• Video Formats: CVI / TVI / AHD / CVBS
• Day/Night Mode: Auto / Color / B&W
• WDR: DWDR
• Noise Reduction: 2D NR
• Smart IR: Yes
• Privacy Masking: 8 Areas
• Mirror Support: Yes

Power

• Power Supply: 12V DC
• Power Consumption: Max 2.5W

Environment

• Operating Temperature: -40°C to +60°C
• Humidity: <95% RH

Build & Installation

• Material: Plastic
• Dimensions: Φ85 × 77.1 mm
• Net Weight: 0.13 kg
• Gross Weight: 0.19 kg
• Installation: Wall Mount / Ceiling Mount / Vertical Pole Mount

Package Details

• Shipping Weight: 0.19 kg
• Weight Category: Less than 1 kg
• Suggested Box Size: 18 × 12 × 8 cm (approx.)
